Uploading your data#

This tutorial teaches you how to format and upload a dataset. With an uploaded dataset, OpenProtein.AI can visualize your data and train models to optimize your designs.

What you need before getting started#

Format your dataset as a CSV table with columns containing:

  • the full sequence or mutation code of each variant.

  • measurement values.

Mutation codes denote the specific substitutions that occur at a site. For example, A20T would indicate that alanine at site 20 is substituted with threonine. You can specify multiple mutation codes per sequence by using commas between mutations.

Use a hyphen (-) to indicate each gap in your sequence. Missing measurements are acceptable.


Creating a project and uploading your data#

If you are signing in for the first time, create a project by following the prompt on your screen. You can also select New Project on the main project page. Create a separate project for each parent sequence you use.


Start by naming your project and including an optional description.

Select Upload dataset and navigate to your CSV file in the file explorer. You can enter a new name for the dataset, or use the default file name. You can also include a description of the dataset, or select a different file using the Change button.

After selecting Open, the application automatically detects your sequence’s columns based on the column name.

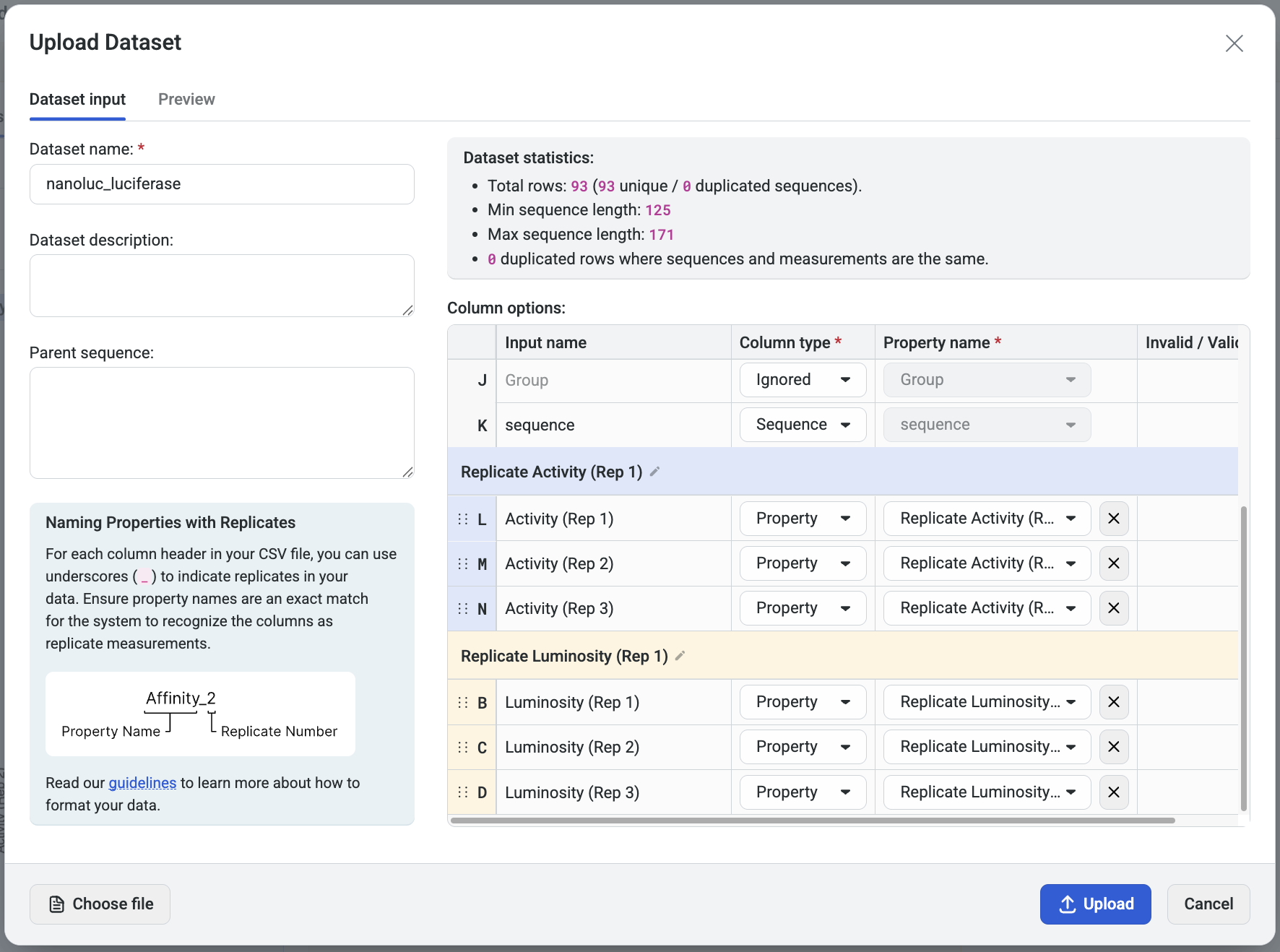

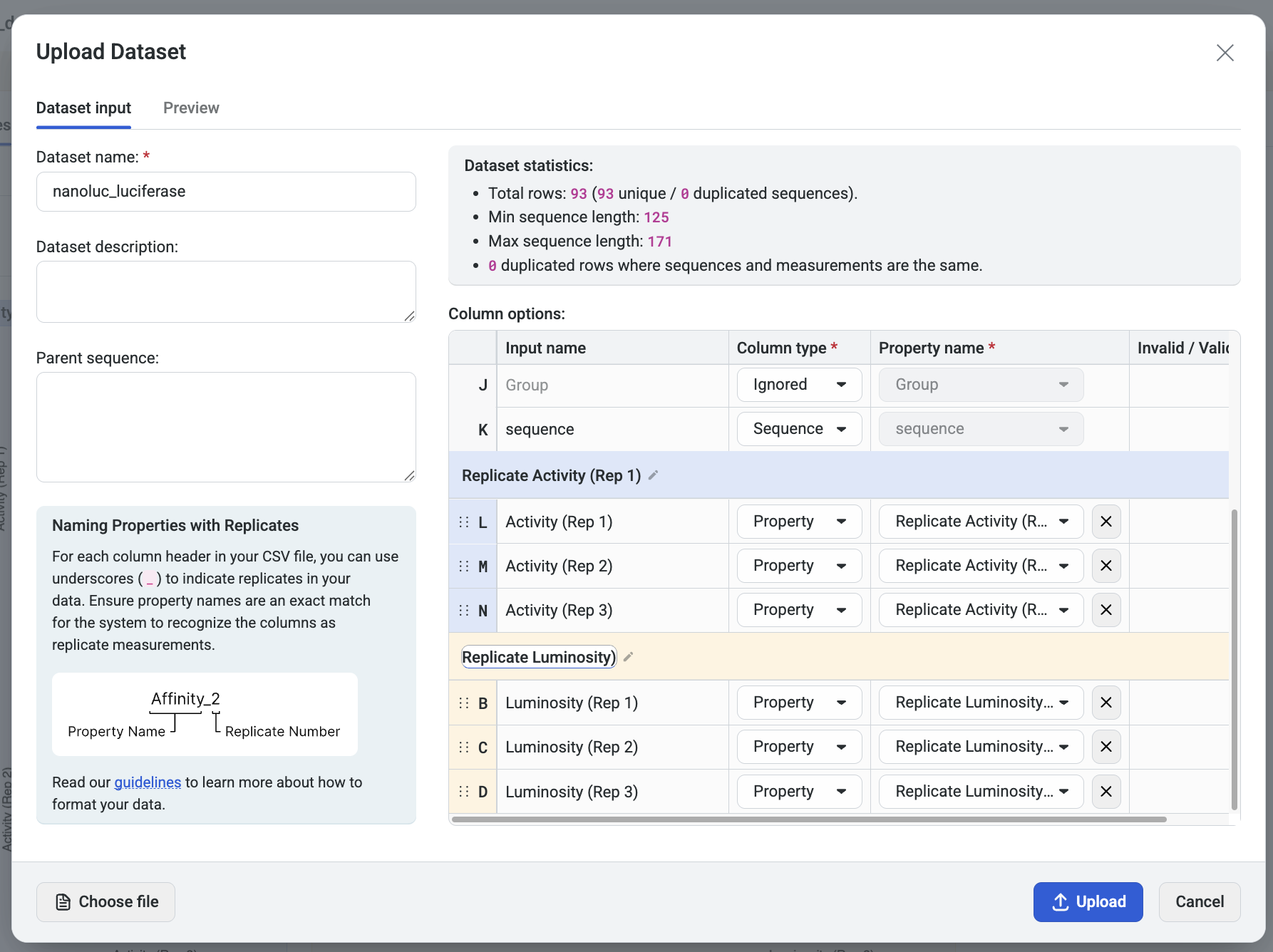

If the column types are not automatically filled, you can input them manually using the dropdown Column type menu options:

  • Identifier: user assigned names for each sequence (this is subjective, and dependent on what the user decides to name the sequence).

  • Property: measurements corresponding to the property that user wish to optimize. 1 property should be 1 column.

  • Sequence: the sequences of your variants

  • Mutant: mutation codes. If you use mutation codes, you will be required to input the parent sequence.

  • Ignored: sequences will not be uploaded.

For datasets containing sequences with mutation codes, enter the wild-type sequence of your protein in the Parent sequence field, then select mutant in the Column type dropdown menu. The platform will process and display the full sequence of each variant specified by your mutation codes.

Select Upload when you are ready to upload your dataset.


Visualizing your data#

Your dataset is displayed as a UMAP, joint plot, and data table.


Each point in the UMAP visualization represents a single sequence variant.


Joint plot#

The joint plot displays the pairwise relationships between properties from your dataset. You can visually explore your data by selecting properties and viewing the distribution of individuals of each variable.


Data table#

Your Dataset page shows the properties of your dataset, along with a table that you can filter and sort. Select Dataset Info to view a list of your dataset’s properties along with their valid and invalid values.

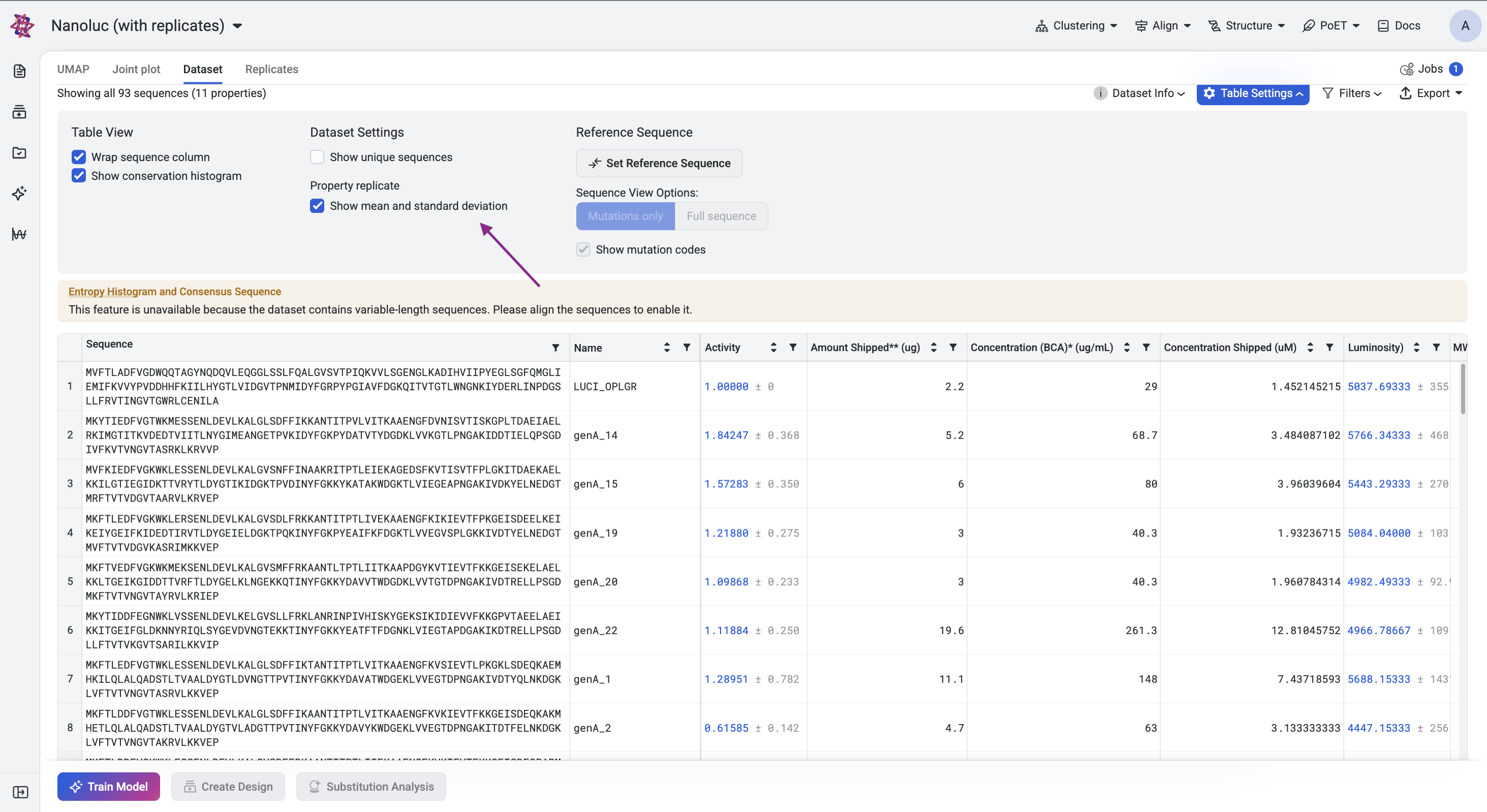

Select Table Settings to adjust your table organization and contents. Under Table View, select Wrap Sequence column to display the entire sequence wrapped in the sequence column. Uncheck this option to unwrap the sequence column and enable horizontal scrolling.

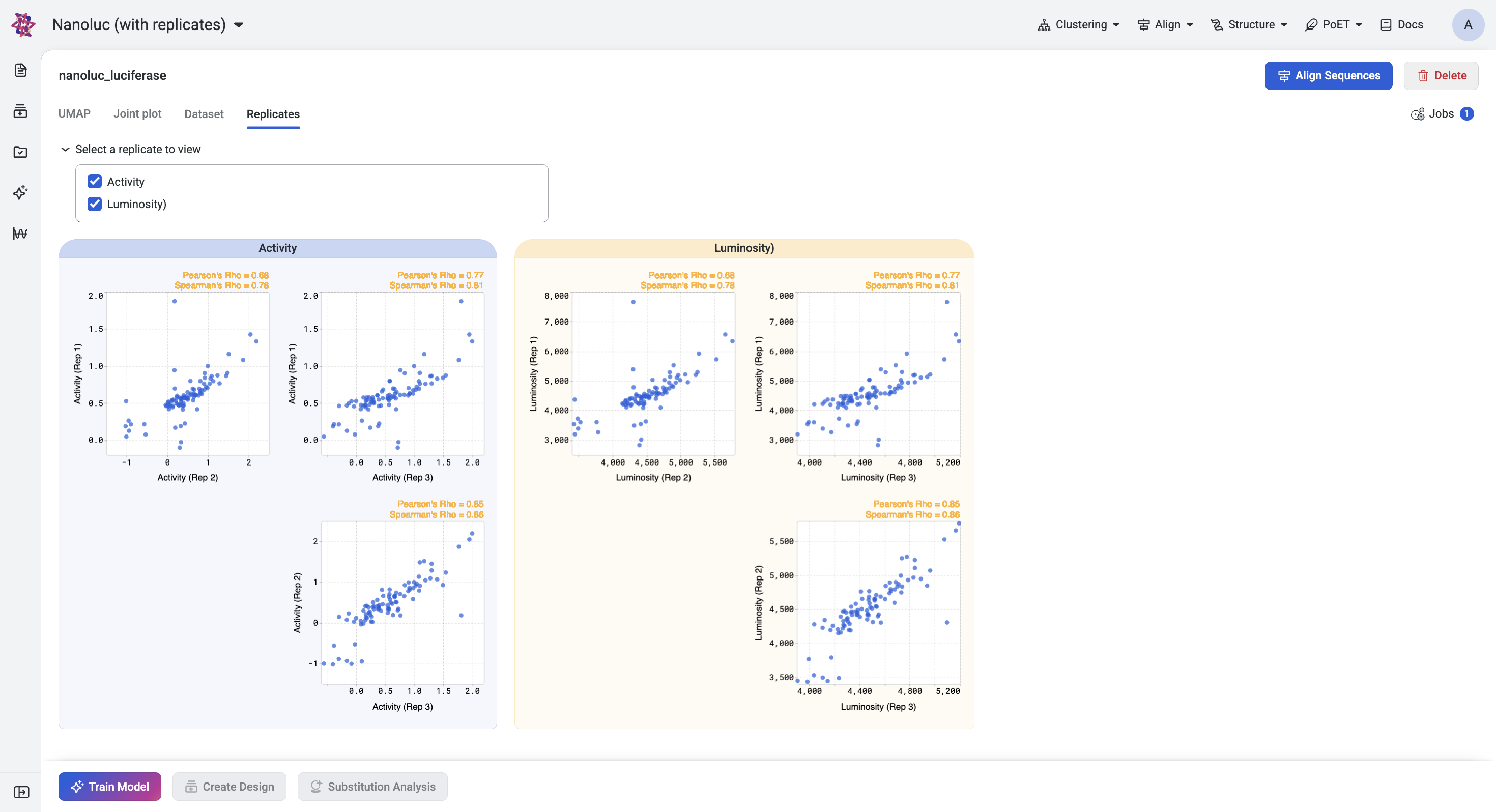

If your dataset contains duplicate sequences, you have the option to select Show unique sequences and view a unique sequence where the displayed value is the mean and standard deviation of all of the duplicates. If this is unchecked, all replicates with their raw uploaded values are shown.

You can also set, edit, or delete a reference sequence using the Edit Reference Sequence button, or delete a reference sequence by selecting X. If you have a reference sequence, use Sequence View Options to display either the full sequence or only the mutation sites relative to the reference sequence. You can also select Show mutation codes to add mutation codes as an additional table column.


Find more information about OpenProtein.AI’s visualization options in Visualizing your data.
